Model MP1, MAP1, MAP2, MAP3

Miniature Weld Head



By utilizing the unique methods of CONVENTION and SHUNT-type welding, this particular design provides a wide range of possibilities in the project, spot, and hot up-set welding fields, such as: quick-change tooling, bearing guided accuracy, short run mobility, and adaptive "SHUNT fixture tooling."



Features

  • Freestanding for miniature parts production

  • Linear and bearing guided smooth motion

  • Weld cylinder: 1/2" to 1" bore x 3/4" stroke

  • MP1: Dead weight head force

  • MAP2: Shunt-Fixture weld tooling

  • MAP3: Spot weld tooling

  • 6" bore x 4" stroke weld cylinder

Specifications

  • Stroke: 0" - 3/4" (additional stroke available)

  • Dimensions (inches HWD) (lbs. Weight)

    • MP1: 7" x 3" x 5"  4.5 lbs.

    • MAP1: 12.5" x 3" x 5.5"  6.0 lbs.

    • MAP2: 10.5" x 6" x 11"   5.5 lbs.

    • MAP3: 14" x 4" x 9"   7.0 lbs.

Options

  • 1/2" to 1" bore weld cylinder

  • Additional weld cylinder stroke

  • Adjustable retract stroke cylinder for multi-positioning

  • Custom tooling designed for the current job

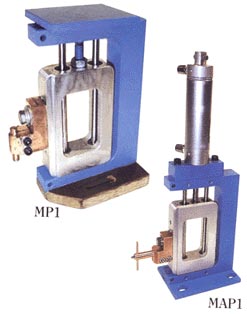

Photo 1

Photo 2



Photo 3

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.  Photographs shown are typical configurations and do not necessarily represent the standard product.
