Model B1BW

Miniature Bench Weld Station

The Model B1BW is a basic, flexible, modularly designed bench welder.  This unique design allows you to inter-change welder components, such as: control, weld transformer, and tooling.  The adaptability of this model promises to retain its production and budget efficiency both for the current job, and any of the future.  Additionally, the equipment is reconfigurable with many options, available to enhance its function.



Features

  • Re-configurable, adaptable and flexible
  • Precision welding capabilities
  • 440 / 220 Volt / 20 KVA Transgun Transformer
  • Single phase 60-Hertz operation
  • Rigid and freestanding
  • Nickel-plated secondary for wear and corrosion resistance
  • Long-life laminated shunt construction
  • 1 1/8" bore x 1" stroke weld cylinder
  • Adjustable air controls, regulator and air filter
  • Water system designed for minimal water connections, which minimizes leak potential
  • Weld valve: single solenoid 120 VAC
  • Single stage foot-switch
  • Jenzano Model # JCUA weld control unit
  • Complete operator's / maintenance manual
  • Optimized, thermally-protected, solid state SCR
    • Water-cooled
    • Thermally protected
    • Easy repair / replace
    • Off the shelf components
    • Rated over 200% of machine capacity
    • Detachable terminal strips
    • Modular unit
    • Easily accessible

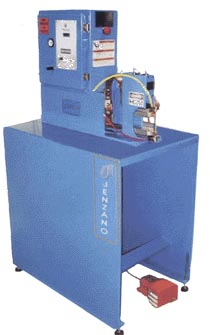

Photo 1

Specifications

  • Control type: Single Phase

  • Input volt.: 220/480V +/-10% - 100/50 Amp

  • Input frequency: 50/60 Hz
  • Timed periods:
    • Clamp time: 00 to 99 cycles
    • Weld time: 00 to 99 cycles

  • Percent current: 5 - 99%

  • Weld Force Ratio: 1:1 (options available)

  • Dimensions (HWD), Weight (approximate):

    • Welder: 24" x 11" x 30"      35 lbs.

    • Pedestal: 36" x 24" x 36"   100lbs.



Options

  • Two or three-stage foot-switch

  • Anti-tie down palm buttons

  • 220 / 440 dual voltage transformer

  • Increased weld cylinder size and stroke

  • Adjustable retractable stroke

  • Optional water-cooled tooling

  • Optional two post splice welder tooling

  • Water saver (solenoid valve)

  • Weld monitoring (secondary voltage)

  • Water / air heat exchanger



Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.  Photographs shown are typical configurations and do not necessarily represent the standard product.
