Model Single/Dual Head

Spot/Projection Welder


Jenzano knows that each Customer has different needs, and in order to meet those needs, we offer a wide variety of options, as well as custom configurations.  The Jenzano Single/Dual Head Spot and Projection Welder is available as a single or dual head machine.  (Single head configuration may be upgraded to the dual head configuration as your needs change.)  Applications include spot and projection resistance welding, hot upset forge and resistance brazing.



  • ECONOMICAL


  • Bench or Floor Mount

  • Hardened design for use in industrial environments

  • Lower holder water cooled (1" diameter)

  • Secondary conductor - dry jumper

  • Uses standard packaged transformers (20-80 KVA - Other sizes are available upon request.)





  • Standard Weld Head Forces at 80 psi: 350 lbs., 500 lbs., 750 lbs., 900 lbs. (Other sizes are available upon request.)

  • Throat Depth: 6", 12", 24" (Other sizes are available upon request.)

  • Maximum Weld Stroke: 1 1/2" (Other sizes are available upon request.)

  • Electrodes:  #1 M.T.


  • Floor mount pedestal

  • Portable/fixed table

  • Laminated secondary conductor

  • Retractable weld stroke

  • Low and high force system

  • "Slow Approach" weld force system

  • 2-stage footswitch

  • Operator station

  • Heat exchanger

  • Dual palm button initiation

  • #2 M.T. electrode adaptor

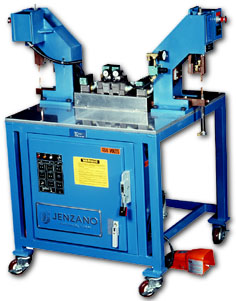

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.  Photographs shown are typical configurations and do not necessarily represent the standard product.
