Model H2PW3
Heavy Duty Press Welder
The Jenzano Heavy Duty Press Welder is a versatile machine that serves as
either a spot or projection welder. With adjustable controls and
reconfigurable options, this machine can adapt to your current and future needs.
Features
-
440 Volt, 250
KVA Single Phase transformer
-
50/60 Hertz
operation
-
Upper and lower
"T" slotted #3 RWMA platen
-
Long-life,
laminated jumper construction
-
6" bore x 4"
stroke weld cylinder
-
Filter,
regulator, lubricator
-
Roller bearing
guided slide
-
Weld valve with
regulator
-
Adjustable air
speed control
-
Freestanding
design
-
Spot or
projection welder
-
Adjustable lower
knee
-
"T" slotted
upper and lower platens
-
Adjustable ram
-
Precision roller
bearing slide
Specifications
-
Input
voltage: 480V +/- 10% - 400 Amp
-
Input
frequency: 50/60 Hz
-
Stroke: 0" - 4"
(Adjustable)
-
Throat
Depth: 16" Nom.
-
Throat
Height (between platens): 6" - 20"
-
Weld force
multiplier: 28.27 (60psi=1696lb.force)
-
Dimensions (HWD):
99" x 40" x 60"
-
Weight
(approximate): 3500 lbs.
|
|

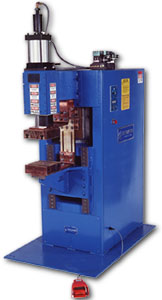

H2PW3 machine shown with options
O ptions
-
2 or 3
stage foot-switch
-
Remote tap
switch
-
Circuit
breaker
-
Special
Tooling
-
Water flow
sight gauge
-
Electronic
resetting parts counter
-
Coolant
saver (solenoid valve)
-
Entron,
Jenzano, Robotron, WTC and other manufacturers' weld controls
-
Dual machine
interlocks
-
Adjustable
retract stroke cylinder (2 position)
-
Water
re-circulator
-
Weld
monitoring
-
Weld set
down monitoring
-
"Part
Present" sensing
-
Spot welder
horn
-
Assembled/tested SCR
contractor panel
-
440 Volt,
150 KVA single-phase transformer
-
440 Volt,
500 KVA single-phase transformer
-
150 - 500
KVA transformer
Power requirements must be verified at the time of purchase. Specifications
are subject to change without notice.
Customer assistance in evaluating proposed application is available.
