Model H1BW

Heavy Duty Bench Welder



The Jenzano Heavy Duty Bench Welder is a multi-purpose spot OR projection welder that offers a heavy duty, reconfigurable design.  The bench design and the ability to use multiple units in unison allow for maximum flexibility while minimizing floor space requirements.  Boasting T-slotted upper and lower plates and a precision roller bearing slide, Model H1BW affords optimal efficiency.

  •  MULTI-PURPOSE

  •  SPACE-EFFICIENT

  •  FLEXIBLE

Features

  • 440 Volt, 22 - 70 KVA single-phase transformer

  • 50/60 Hz operation

  • Rigid or freestanding

  • Spot or projection weld head

  • Upper and lower T-slotted #1 platen

  • Long-life laminated shunt construction

  • Roller bearing guided slide

  • Weld valve with regulator

  • Adjustable air speed control

  • Operator's manual

  • Control contractor option required

Specifications

  • Input voltage: 480V +/- 10% - 200 Amp

  • Input frequency: 50/60 Hz

  • Stroke: 0" - 4"

  • Throat Depth (approximate): 7.5"

  • Throat Height (approximate): 5.5"

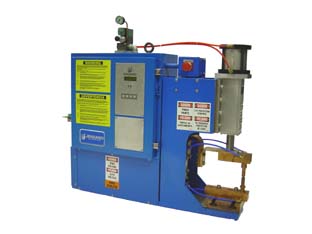

H1BW machine shown with options

  • Weld Force Multiplier: 28.27 (60psi = 1696 lb. force)

  • Max weld force: 2000 lbs.

  • Dimensions (approximate, HWD): 35" x 10" x 37"

  • Weight (approximate): 350 lbs.

Options

  • Two-stage foot switch

  • Various force systems (cylinders)

  • Other voltages for tap switch

  • Dual palm buttons

  • Circuit breaker

  • Special tooling

  • Single head table stand

  • Water flow sight gauge

  • Electric resetting parts counter

  • Coolant saver (solenoid valve)

  • Welding controls available for:  Entron, Jenzano, Robotron, WTC and other manufacturers

  • Dual machine interlocks

  • Adjustable retracts stroke cylinder

  • Water/air heat exchanger

  • Weld monitoring

  • Weld set down monitoring

  • "Part Present" sensing

  • Spot welder horns

  • Assembled and tested SCR contractor panel

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.
