Model CS2S/P

Heavy Duty Seam Welder



Features

  • Seam, spot or projection welder

  • Precision roller bearing seam head

  • Precision roller bearing slide

  • Freestanding design

  • Large throat area

  • Multi-purpose, reconfigurable

  • Adjustable lower knee

  • Long 4" stroke

  • 440 Volt, 75 KVA single-phase transformer

  • 50/60 Hz operation

  • Upper and lower "T" slotted #1 RWMA platen

  • Long-life laminated jumper construction

  • 5" or 6" bore x 4" weld cylinder

  • Filter, regulator, lubricator

  • Roller bearing guided slide

  • Weld valve with adjustable regulator

  • Limit and fault indicators facilitate troubleshooting

Specifications

  • Input voltage:  480 VAC +/- 10% - 200 AMP

  • Input frequency:  50/60 Hz

  • Stroke:  0" - 4" (adjustable)

  • Throat depth (nominal):  12"

  • Throat height (between platens):  6" - 15"

  • Weld force multiplier: 28.27 (60 psi = 1696 lbs. force)

  • Dimensions (HWD):  80" x 30" x 50"

  • Weight (approximate):  1200 lbs.

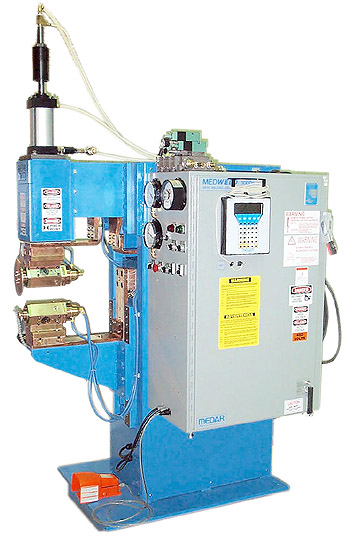

 Heavy duty seam welder, shown with options



Options

  • Upper and/or lower direct drive

  • Two or three stage foot-switch

  • Special tooling

  • Electric resetting parts counter

  • Coolant saver (solenoid valve)

  • Dual machine interlocks

  • Adjustable retracts stroke cylinder

  • Spot welder horns

  • Assembled and tested SCR contactor panel

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.
