Model B2T1, B2T2 & B2T3
Die-Set Tooling



This design utilizes a unique method of welding by combining tooling die-sets with welding application.  This allows for a wide range of possibilities in the project, spot, and hot up-set welding fields, such as:

  • Quick Change Tooling
  • Tool & Die accuracy
  • Short run flexibility
  • Adaptive Tooling



RUGGED, PRECISE, FLEXIBLE





Features

  • Freestanding two and four-post copper die-set

  • Stainless steel linear shafting with insulated guide bushings for smooth electrode motion

  • 4" bore x " stroke weld cylinder

  • B2T1: two post die-set with optional tooling

  • B2T2: four post die-set with extended horn spot weld tooling

  • B2T3: two post die-set with splice welder tooling

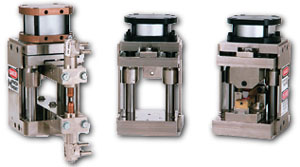

(From Left to Right: B2T1, B2T2, B2T3)







Specifications

  • Stroke: 0" - 3/4" (additional stroke available)

  • Weld Force Multiplier: 12.57                 (60psi = 754 lbs force)

  • Weight (approximate): 50 Lb

  • Dimensions (HWD)

    • B2T1: 11 3/8" x 6 1/2" x 6 7/8"

    • B2T2: 11 3/8" x 6 3/4" x 11 1/4"

    • B2T3: 11 3/8" x 6 1/2" x 6 7/8"


Options

  •  2" to 5" bore weld cylinder

  • Additional weld cylinder stroke

  • Adjustable retract stroke cylinder for multi-positioning

  • Custom tooling designed for the current job


Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.  Photographs shown are typical configurations and do not necessarily represent the standard product.
