Model H2PW

Heavy Duty Welder



The Jenzano Heavy Duty Welder is a conveniently designed machine that functions as either a spot OR projection welder.  Exhibiting flexible controls and numerous configurable options, Model H2PW may be adjusted according to specific needs.



Features

  • 440 Volt, 75 KVA single-phase transformer

  • 50/60 Hz operation

  • Upper and lower T-slotted #1 RWMA platen

  • Long-life laminated jumper construction

  • 6" bore x 4" stroke weld cylinder

  • Filter, regulator, lubricator

  • Roller bearing guided slide

  • Weld valve with regulator

  • Adjustable air speed control

  • Freestanding design

  • Large throat area

  • Multi-purpose, reconfigurable

  • Spot or projection welder

  • Adjustable lower knee

  • "T" slotted upper and lower platens

  • Adjustable ram

  • Precision roller bearing slide

Specifications

  • Input voltage: 480V +/- 10% - 200 Amp

  • Input frequency: 50/60 Hz

  • Stroke: 0" - 4" (adjustable)

  • Throat Depth: 12" Nom.

  • Throat Height (between platens): 6" - 15"

  • Weld force multiplier: 28.27 (60psi=1696lb.force)

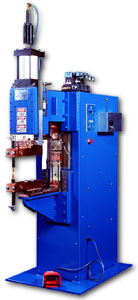

H2PW machine shown with options

  • Dimensions (HWD):  80" x 30" x 50"

  • Weight (approximate):  1200 lbs.

Options

  • Two or three stage foot-switch

  • Tap switch

  • Circuit breaker

  • Special tooling

  • Water flow sight gauge

  • Electronic resetting parts counter

  • Coolant saver (solenoid valve)

  • Entron, Jenzano, Robotron, WTC and other manufacturers' weld controls

  • Dual machine interlocks

  • Adjustable retracts stroke cylinder (2 position)

  • Water re-circulator

  • Weld monitoring

  • Weld set down monitoring

  • "Part Present" sensing

  • Spot welder horns

  • Assembled and tested SCR contactor panel

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.
