Model 5KW - 50KW

Induction Heaters

Note: *3KW Single Phase also available*



Features

  • Full output power at wide range of frequencies

  • MOSFET technology

  • Small and lightweight heat station

  • Meter indicates:  output power, voltage, current

  • Limit /fault indicators facilitate troubleshooting

  • Remote heat stations

  • Remote control pendant

  • Flexible connection kit between power supply and heat station

  • Output available on left, right or both cabinets

Model

Output Power  (kW)

Freq

Range

 (kHz)

Input

Power

 (KVA)

Dimensions

 (D x W x H)

 (in)

Weight



 (lbs)

Water

Flow

 (GPM)

Output

Power

Factor

MF-5

5

35-100

5.80

24 x 15 x 14

55

 .5

.34

  RF-5

5

135-400

5.80

24 x 15 x 14

55

 .5

 .34

MF-7.5

7.5

35-100

5.80

25 x 15 x 14

60

.75

 .5

RF-7.5

7.5

135-400

8.8

25 x 15 x 14

60

.75

.5

MF-12.5

12.5

35-100

14.8

15 x 20 x 36

110

1.0

.5

RF-12.5

12.5

135-400

14.8

15 x 20 x 36

110

1.0

.5

MF-25

25

35-100

29.6

15 x 20 x 36

140

2.0

.5

RF-25

25

135-400

29.6

15 x 20 x 36

140

2.0

.5

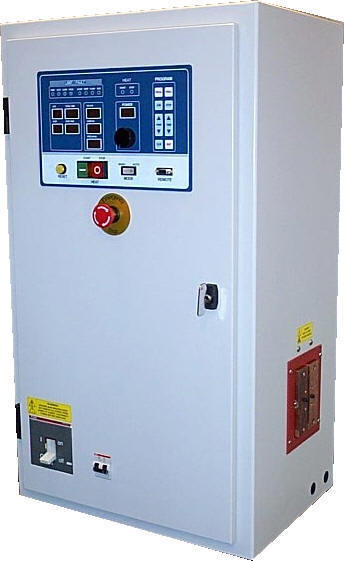

Typical 25KW Induction Heater



Typical 5KW Induction Heater



Specifications

  • Power:  208-240 Volt, 3 phase, 50/60 Hz

  • Maximum voltage fluctuation:  10%

  • Minimum input power factor:  0.92

Water cooling requirements:

  • Min. differential pressure:  30 psi

  • Max. inlet pressure:  100 psi

  • Min. resistivity:  590 Ohm/in.

  • Inlet temp range:  68F - 105F

Power requirements must be verified at the time of purchase. Specifications are subject to change without notice.  Customer assistance in evaluating proposed application is available.
